The Best Lead Guard Mechanical Pencils

As their name suggests, lead guard pencils are mechanical pencils with features meant to reinforce and cushion delicate leads. Lead guard mechanical pencils greatly reduce lead breakage so you don’t waste lead or interrupt your focus. Keep reading to learn about different types of lead guards and our favorite lead guard pencils.

The Best Lead Guard Pencil: Zebra DelGuard Mechanical Pencil

The best lead guard pencil is the Zebra DelGuard Mechanical Pencil.

Shop Now

The best lead guard pencil is the Zebra DelGuard Mechanical Pencil. Often described as an “unbreakable mechanical pencil,” it uses a dual spring system that protects the lead from even the most heavy-handed writers. A spring in the barrel allows the lead to retreat into the pencil tip if there’s too much vertical pressure, while another spring in the pencil tip extends the lead sleeve when there’s too much sideways pressure.

The Zebra DelGuard comes in various body styles, ranging from the standard plastic version to the ergonomic Type-GR. Read our comprehensive guide to learn more.

Table of Contents

What Is a Lead Guard Pencil?

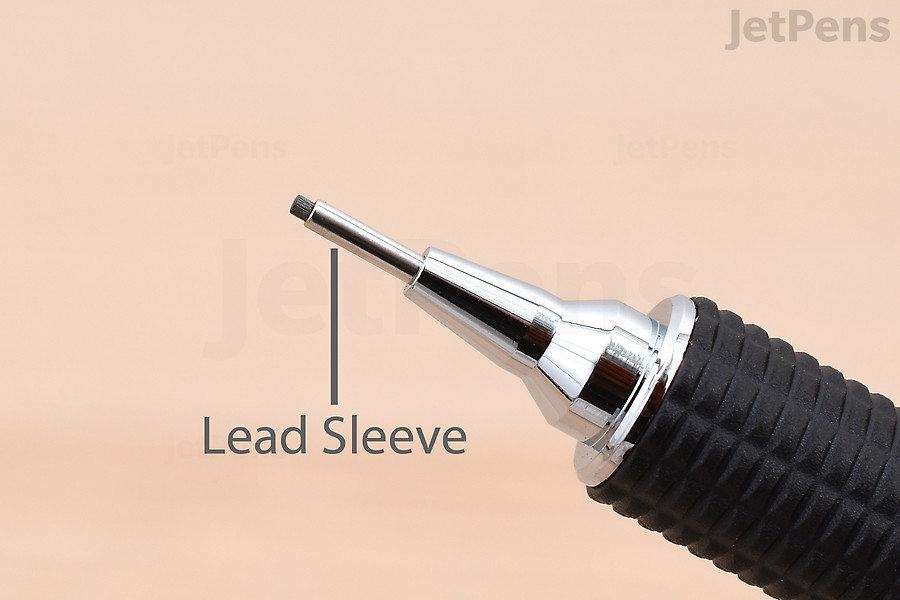

A lead guard pencil is a type of mechanical pencil that utilizes lead sleeves (also called guide pipes) or internal mechanisms to protect the lead and prevent it from breaking.

A lead guard pencil is a type of mechanical pencil that utilizes lead sleeves (also called guide pipes) or internal mechanisms to protect the lead and prevent it from breaking. Pencil leads are fragile and easily affected by writing pressure, which can lead to breakage—especially if you’re a heavy-handed writer. Using a lead guard pencil can limit this frustration for a more seamless and enjoyable writing experience.

Lead guarding mechanisms are only found on mechanical pencils. Wooden pencils don’t have lead guarding features.

Lead Guard Sleeve Types

We’ve listed the four main types of lead guard sleeves below. Bear in mind that extending too much lead can prevent the lead guard from working correctly.

Sliding Lead Sleeve

The majority of lead guard pencils use sliding lead sleeves.

The majority of lead guard pencils use sliding lead sleeves. The lead sleeve, also known as the guide pipe, protects most of the lead while leaving just enough exposed for writing or drawing. As the lead gets used up, the sleeve touches the writing surface and retracts into the pencil’s nose cone. This exposes more lead. With a sliding lead sleeve, you don’t have to extend the lead as often.

Since the lead sleeve has to touch the writing surface to retract, many pencils with this feature have rounded tips to prevent the guide pipe from scratching the paper. However, you may still feel some feedback (the tactile sensation of the writing instrument making contact with the paper).

Because sliding lead sleeves can fully retract into the pencil, they’re less likely to poke holes in pen cases or pockets. To ensure the guide pipe is protected, hold the top push button and press the lead sleeve into the nose cone. After releasing the push button, the lead sleeve will remain inside the pencil until the next time you extend the lead.

We should note that there’s a difference between sliding lead sleeves and retractable lead sleeves that perform other functions. While both are able to go into the pencil body to protect them from becoming damaged, only sliding lead sleeves recede as lead is used up.

Dynamic Lead Sleeve

The Zebra DelGuard is currently the only pencil to feature a dynamic lead sleeve.

The Zebra DelGuard is currently the only pencil to feature a dynamic lead sleeve. Instead of the guide pipe gradually moving back as you write, it extends when the lead experiences heavy sideways pressure and lets the lead slide back into the tip when there’s heavy vertical pressure.

Spring Cushion Lead Sleeve

Similar to the Zebra DelGuard, some lead guard pencils use springs to absorb writing pressure.

Similar to the Zebra DelGuard, some lead guard pencils use springs to absorb writing pressure. However, the pencils typically only have single springs rather than dual spring mechanisms. They allow lead to retract back into the pencil to prevent breakage. Some pencil users feel that this mechanism can create a “soft” or “mushy” writing sensation, while others barely notice it.

Fixed Lead Sleeve

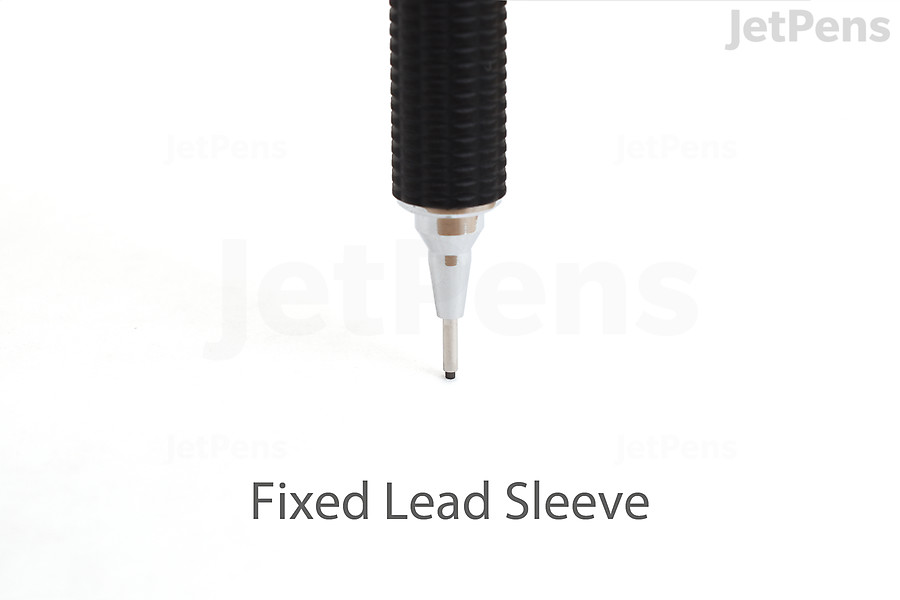

A fixed lead sleeve doesn’t retract back into the pencil’s nose cone, which provides a stable writing experience and a clear view of the paper.

A fixed lead sleeve doesn’t retract back into the pencil’s nose cone, which provides a stable writing experience and a clear view of the paper. While one might assume fixed lead sleeves are more fragile and less convenient to use on the go, these pencils have a second protective feature. For example, the Platinum Pro-Use 171 uses an adjustable fixed lead sleeve and a spring cushion.

The Best Lead Guard Pencil Recommendations

The Best Lead Guard Pencil for Note-Taking: Uni Kuru Toga Advance Mechanical Pencil

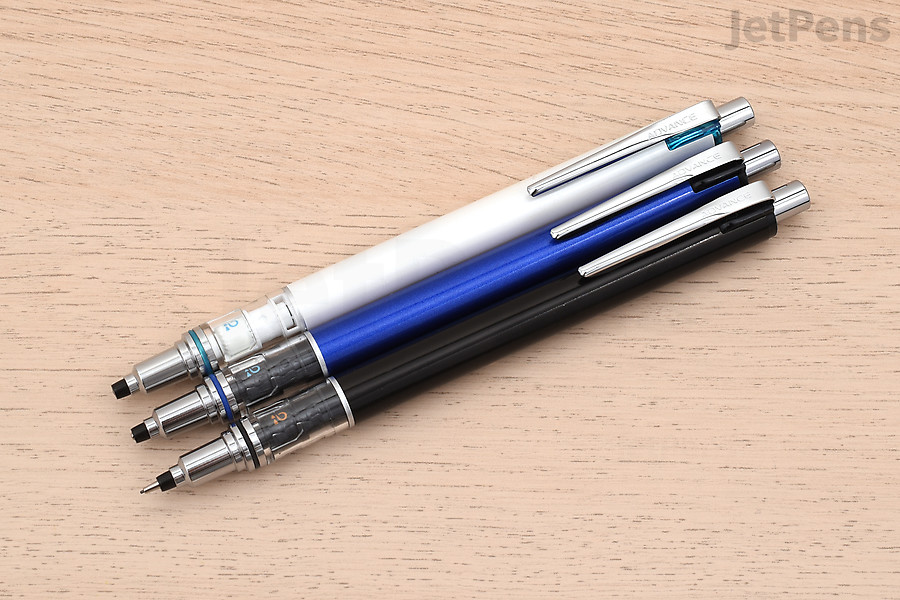

The Kuru Toga Advance is a step up from the standard Kuru Toga, with a sliding lead sleeve and Uni’s W Speed Engine that rotates lead twice as fast.

The Uni Kuru Toga Advance is a step up from the standard Kuru Toga, with a sliding lead sleeve and Uni’s W Speed Engine that rotates lead twice as fast.

Shop Now

Uni Kuru Toga Mechanical Pencils are ideal for writing, with built-in mechanisms that rotate the lead for consistent marks. The Kuru Toga Advance is a step up from the standard Kuru Toga, with a sliding lead sleeve and Uni’s W Speed Engine that rotates lead twice as fast. This is better for softer leads like 2B, which wear down faster, and simpler scripts like Roman characters, which use fewer and longer strokes.

The Kuru Toga Advance is available in three tip sizes. The extra fine 0.3 mm is best for smaller handwriting styles while the 0.5 mm and 0.7 mm sizes can be used for everyday writing.

Other Uni Kuru Toga pencils that feature the W Speed Engine and sliding lead sleeve are the Pipe Slide and Advance Upgrade. The Pipe Slide is lightweight with an all plastic body, while the Advance Upgrade has a textured metal grip section that helps maintain your grasp.

Also Consider: Pilot Mogulair Mechanical Pencil

Similar to how a car’s suspension absorbs the bumps in the road when driving, the Pilot Mogulair uses an “active suspension” mechanism with a spring cushion to reduce the initial impact of putting the pencil tip to paper. The mechanism also allows the lead to retract into the tip when there’s too much writing pressure. You can shake the pencil to advance the lead (a handy feature when you’re concentrating on your writing), or press on the top button.

The Best Lead Guard Pencil for Thin Lead: Pentel Orenz Mechanical Pencil

The ultra fine Pentel Orenz is the only pencil to accommodate 0.2 mm lead.

Shop Now

The ultra fine Pentel Orenz is the only pencil to accommodate 0.2 mm lead, which can be used for intricate math problems or annotations in textbooks. To keep this delicate lead from breaking, the Orenz has a sliding lead sleeve that retracts as you write.

If you often find yourself in the middle of long writing sessions, consider the Orenz Nero and Orenz AT. Along with sliding lead sleeves, these pencils will automatically advance the lead. After extending the lead once, you can keep writing until it’s used up!

Also Consider: Pilot Fure Fure Me Shaker Mechanical Pencil

Writers who want a pencil that’s as stylish as it is functional will love the Pilot Fure Fure Me. This cute mechanical pencil has a sliding lead sleeve and shaker mechanism that can dispense lead by shaking the pencil up and down without adjusting your grip. It is available with 0.3 mm lead for small handwriting and sheet styles.

The Best Lead Guard Pencil for Drawing: Pilot Color Eno Mechanical Pencil

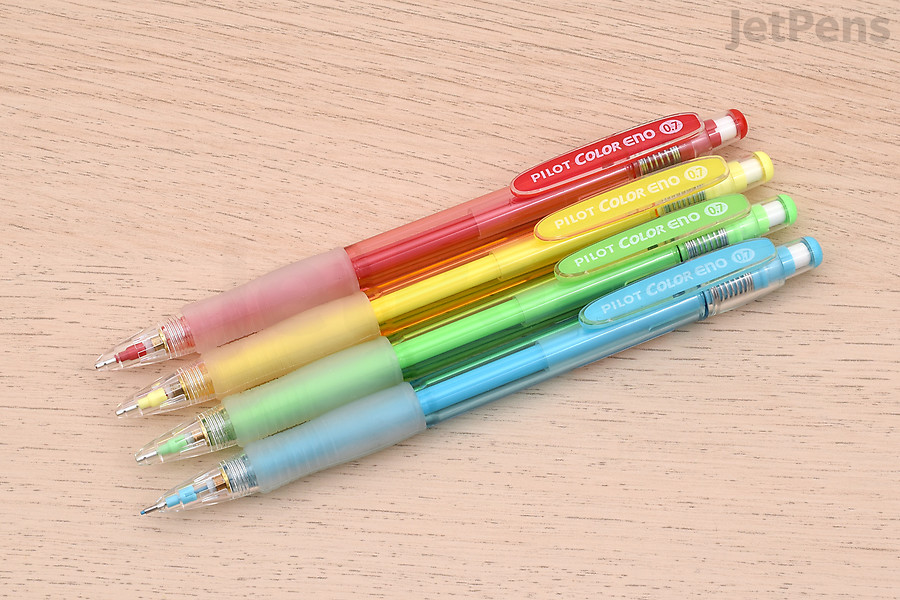

Whether you’re a casual doodler or professional artist, the Pilot Color Eno is a great choice for sketching with colored leads.

Shop Now

Whether you’re a casual doodler or professional artist, the Pilot Color Eno is a great choice for sketching with colored leads. It features a sliding lead sleeve to protect the lead and is available in a rainbow of smudge-resistant and erasable colors. The soft blue lead can even be digitally removed from scanned ink drawings. Be sure to pick up refill leads when you run out.

If you want more color options, try the Uni EMOTT Color Mechanical Pencil. It also features a sliding lead sleeve and comes in unique hues such as Khaki Green and Fuchsia.

Also Consider: Kokuyo Enpitsu Sharp Mechanical Pencil

The standard Kokuyo Enpitsu Sharp Pencil has a hexagonal body similar to that of a wooden pencil, which makes it a great fit for artists more used to traditional sketching tools. The Enpitsu Sharp has a sliding lead sleeve and is easy to refill: just drop the lead into the hole at the top of the pencil. The Enpitsu’s inner mechanism will keep the lead from falling out, even if it’s flipped upside down. Be sure to pick a separate eraser for corrections or lightening graphite sketches.

The Best Lead Guard Pencil for Everyday Carry: LAMY Safari Mechanical Pencil

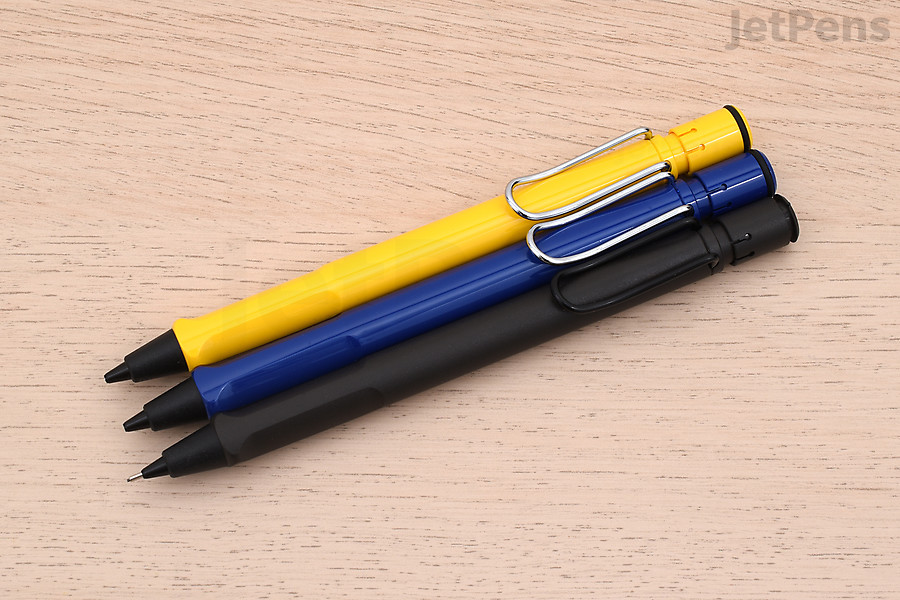

The LAMY Safari Mechanical Pencil is made of indestructible ABS plastic and features a contoured grip section that encourages a tripod grasp.

Shop Now

The LAMY Safari Fountain Pen is a JetPens favorite due to its virtually indestructible ABS plastic construction. The Safari Mechanical Pencil is made of the same material and has the same bold styling, with a contoured grip section that encourages a tripod grasp. It’s a great fit for anyone’s everyday carry (EDC) kit.

The mechanical pencil has a sliding lead sleeve so it’s safe to store in your EDC bag of choice. It even comes with a clean-out rod under its refillable eraser, so you can handle lead jams with ease.

Also Consider: Uni-ball 207 Mechanical Pencil

With its comfortable rubber grip section, the Uni-ball 207 Mechanical Pencil is a great no-nonsense writing instrument. Its body design is similar to Uni Signo 207 and 307 pens and easily slips into a pen case. On the off chance you need to keep the pencil in a pocket, the sliding lead sleeve retracts so it won’t poke holes in fabric or create accidental marks. We also appreciate the twist-up eraser shaped like a hexagon for precise corrections.

The Best Ergonomic Lead Guard Pencil: Kokuyo FitCurve Mechanical Pencil

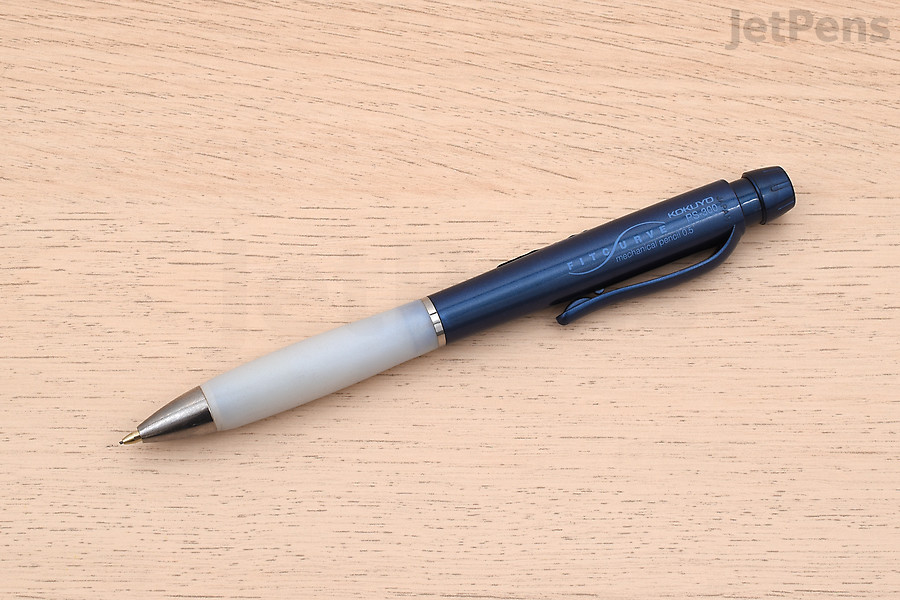

An ergonomic pencil like the Kokuyo FitCurve is ideal for writers who suffer from hand fatigue and cramps.

Shop Now

An ergonomic pencil like the Kokuyo FitCurve is ideal for writers who suffer from hand fatigue and cramps. It has a gentle hourglass shape and a center of gravity located near the pencil’s natural grip location, resulting in a pencil that feels well balanced in the hand. A lower center of gravity creates a more stable and comfortable writing experience, which is complemented by the FitCurve’s sliding lead sleeve and large twist-up eraser.

Also Consider: Staedtler 771 Mechanical Pencil

The Staedtler 771 Mechanical Pencil is another great ergonomic option. Its 1.3 mm lead is less prone to breakage and is protected by a sliding lead sleeve. The pencil’s wide, triangular body and gently molded grip section encourages a relaxed grip style, so if you have a “death grip” this may be the pencil for you!

The Best Metal Lead Guard Pencil: TWSBI Precision Mechanical Pencil

The sleek TWSBI Precision Mechanical Pencil has a metal inner tube and outer body.

Shop Now

The sleek TWSBI Precision Mechanical Pencil has a metal inner tube and outer body that not only cuts down on wear and tear but also gives the pencil a nice weight in the hand. Metal pencils provide more durability than their plastic counterparts, making them perfect for writers who want their supplies to last.

The Precision comes packaged with lead and eraser refills. Choose between retractable tips with sliding lead sleeves and fixed tips that keep the lead sleeves in place. Both versions have grip sections that are softly knurled so your fingers can maintain their grasp.

Also Consider: OHTO MS01 Mechanical Pencil

The OHTO MS01 Mechanical Pencil has a heavier brass grip section and a lighter aluminum barrel. This shifts the center of gravity towards the tip for better control. It also has adjustable features to customize the pencil to your needs. Twist the grip section to change the length of the lead sleeve and twist the component above the grip section to change the amount of lead that is dispensed.

More Resources

Conclusion

If you find you’re experiencing lead breakage often, a lead guard pencil may be the solution you’re looking for. Do you have a favorite lead guard pencil? Let us know in the comments!

Shop This Post

	Tip Sizes	Lead Sleeve Type	Add to Cart
Kokuyo FitCurve Mechanical Pencil	0.5 mm	Sliding	Add to Cart
LAMY Safari Mechanical Pencils	0.5 mm	Sliding	Add Items to Cart
TWSBI Precision Mechanical Pencils	0.5 mm, 0.7 mm	Fixed, Sliding	Add Items to Cart
Pentel Orenz Mechanical Pencils	0.2 mm, 0.3 mm, 0.5 mm	Sliding	Add Items to Cart
Pilot Color Eno Mechanical Pencils	0.7 mm	Sliding	Add Items to Cart
Zebra DelGuard Mechanical Pencils	0.3 mm, 0.5 mm, 0.7 mm	Dynamic	Add Items to Cart
